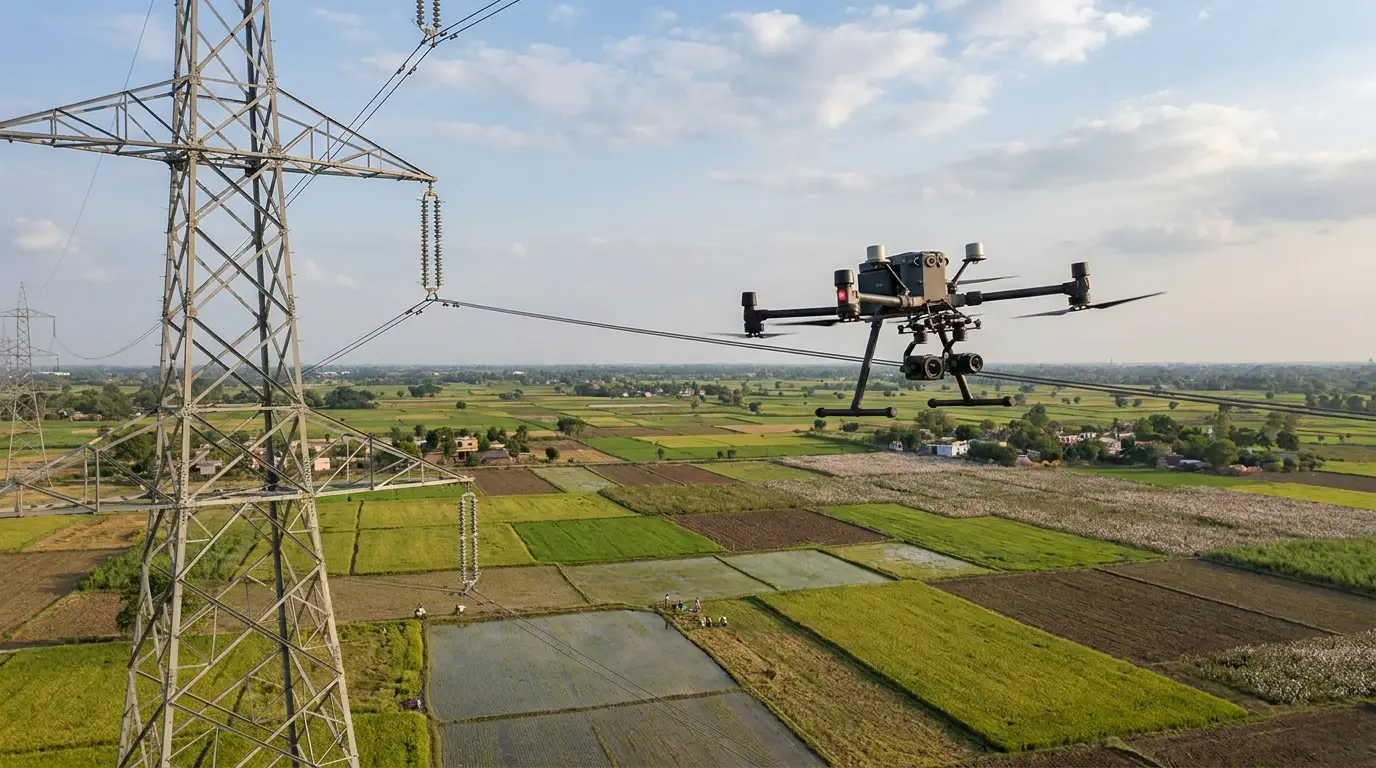

Drone-Based Transmission Line & Powerline Inspection in India: Process, Cost & Safety

India operates one of the largest power transmission networks in the world, spanning lakhs of circuit kilometres across challenging terrain. Inspecting this infrastructure manually — by foot patrol, helicopter, or live-line crews — is slow, expensive, and dangerous. Drone-based transmission line inspection has emerged as the safest and most cost-effective way to monitor powerline assets at scale.

This article covers how drone powerline inspection works, what it detects, what it costs, and why utilities and EPC contractors across India are adopting it.

The Problem With Traditional Powerline Inspection

Conventional methods each carry serious limitations:

• Foot patrols are labour-intensive and cover only a few kilometres per day, often missing defects at the top of towers.
• Helicopter surveys are fast but extremely expensive and limited in resolution and safety near live conductors.
• Live-line inspection exposes crews to high-voltage hazards and requires outages.

Drones solve all three — covering long corridors quickly, capturing tower-top detail, and keeping personnel safely on the ground.

What Drone Inspection Detects

Equipped with the right sensor payloads, a single drone flight can capture multiple fault types:

• Thermal (IR) imaging — overheating joints, loose connectors, and hotspots invisible to the eye.
• High-resolution RGB — corrosion, broken insulators, damaged conductors, and missing hardware.
• Corona detection — partial discharge on insulators and fittings that signals impending failure.
• Vegetation encroachment — right-of-way clearance violations measured against statutory limits.

The Inspection Process

1. Corridor planning: The transmission route is mapped and segmented; flight plans follow the line with the drone maintaining safe clearance from live conductors.
2. Multi-sensor capture: Thermal, RGB, and corona data are collected in a single pass over each tower and span.
3. AI analysis & reporting: Defects are detected, geotagged to specific towers, classified by severity, and compiled into actionable reports via our AiServe platform.
4. Prioritised maintenance list: Operators receive a ranked list of which towers need attention first.

Cost Factors in India

Powerline inspection is usually priced per kilometre or per tower. Key cost drivers:

• Length and accessibility of the corridor
• Sensor payloads required (RGB only vs full thermal + corona)
• Terrain (plains vs hilly/forested right-of-way)
• Reporting depth and integration needs

Because a drone team covers far more line per day than a foot patrol, per-kilometre cost is substantially lower — and the safety benefit of removing crews from high-voltage hazards is invaluable.

The Benefits at a Glance

• Safety: No crew exposure to working-at-height or live-line risk.
• Speed: Tens of kilometres surveyed per day versus a few on foot.
• Coverage: Tower-top and conductor detail captured consistently.
• Predictive maintenance: Early hotspot and corona detection prevents outages and failures.

Why AiRotor Labs

AiRotor Labs delivers transmission line and powerline survey services across India using long-endurance drones with thermal, RGB, and corona sensors, backed by AI-driven analytics through AiServe. We help utilities and EPC contractors move from reactive to predictive maintenance.

Planning a line inspection campaign? Request a consultation and we'll scope it for your network.
