How Thermal Drones Detect Hot Spots in Solar Panels at Scale for Peak Performance

India's solar energy sector is booming, with vast solar farms sprawling across states like Rajasthan, Gujarat, and Andhra Pradesh. These massive installations represent significant investments, and ensuring their continuous, optimal performance is paramount. One of the most insidious threats to solar panel efficiency and longevity is the development of "hot spots" – localized areas of overheating that can significantly reduce power output, accelerate degradation, and even pose fire risks. Manually identifying these defects across thousands, or even millions, of panels is an impossible task. This is precisely where the advanced capabilities of thermal drones detect hot spots in solar panels at scale, revolutionizing solar farm operations and maintenance (O&M).

At AiRotor Labs, we leverage cutting-edge drone technology to provide precise and efficient inspection services, helping solar asset owners in India maintain peak performance and maximize their return on investment. This article delves into the science and process behind how thermal drones effectively identify these critical issues across expansive solar installations.

The Silent Threat: Understanding Solar Panel Hot Spots

Before we explore the solution, it's crucial to understand the problem. Solar panel hot spots are areas on a photovoltaic (PV) module that operate at a significantly higher temperature than the surrounding cells. These elevated temperatures are not just a symptom; they are often a cause of further damage and reduced energy production.

Common causes of hot spots include:

• Micro-cracks: Often invisible to the naked eye, these tiny cracks can disrupt current flow, leading to resistive heating.
• Cell Mismatch: Variations in cell performance within a module can force weaker cells to dissipate energy as heat.
• Shading: Even partial shading of a cell can cause it to become reverse-biased, leading to it acting as a load rather than a generator, and thus overheating. This is particularly relevant in India where dust, bird droppings, or vegetation overgrowth can cause localized shading.
• Soiling: Accumulated dust, dirt, or debris on the panel surface can create shaded areas or reduce heat dissipation.
• Delamination: Separation of the layers within the panel can trap heat and create resistive points.
• Bypass Diode Failure: Bypass diodes are designed to shunt current around shaded or faulty cells. If a diode fails, the current may be forced through the faulty cell, causing it to overheat.

Left unaddressed, hot spots can lead to irreversible cell damage, permanent power loss, and in extreme cases, module failure or even fire. The challenge for large-scale solar farms is that these hot spots are often not visible to the human eye and require specialized equipment to detect.

The Science of Thermal Imaging: Seeing the Invisible

Thermal imaging, or thermography, is the core technology that enables drones to detect hot spots. It works by detecting the infrared radiation emitted by objects. All objects with a temperature above absolute zero emit infrared radiation, and the intensity of this radiation increases with temperature.

Thermal cameras, unlike standard visual cameras, don't capture visible light. Instead, they capture the infrared spectrum, translating temperature differences into a visual image where different colours represent different temperatures. This allows operators to "see" heat.

For solar panel inspections, specialized radiometric thermal cameras are used. These cameras don't just show a thermal image; they can accurately measure and record the temperature of each pixel in the image. High-quality industrial thermal cameras, such as those found on advanced drone platforms like the DJI Matrice series (e.g., Zenmuse H20T or H20N, or the newer M30T), typically offer temperature measurement accuracy of ±2°C or ±2% of the reading, whichever is greater. This level of precision is critical for identifying subtle temperature anomalies that signify emerging faults.

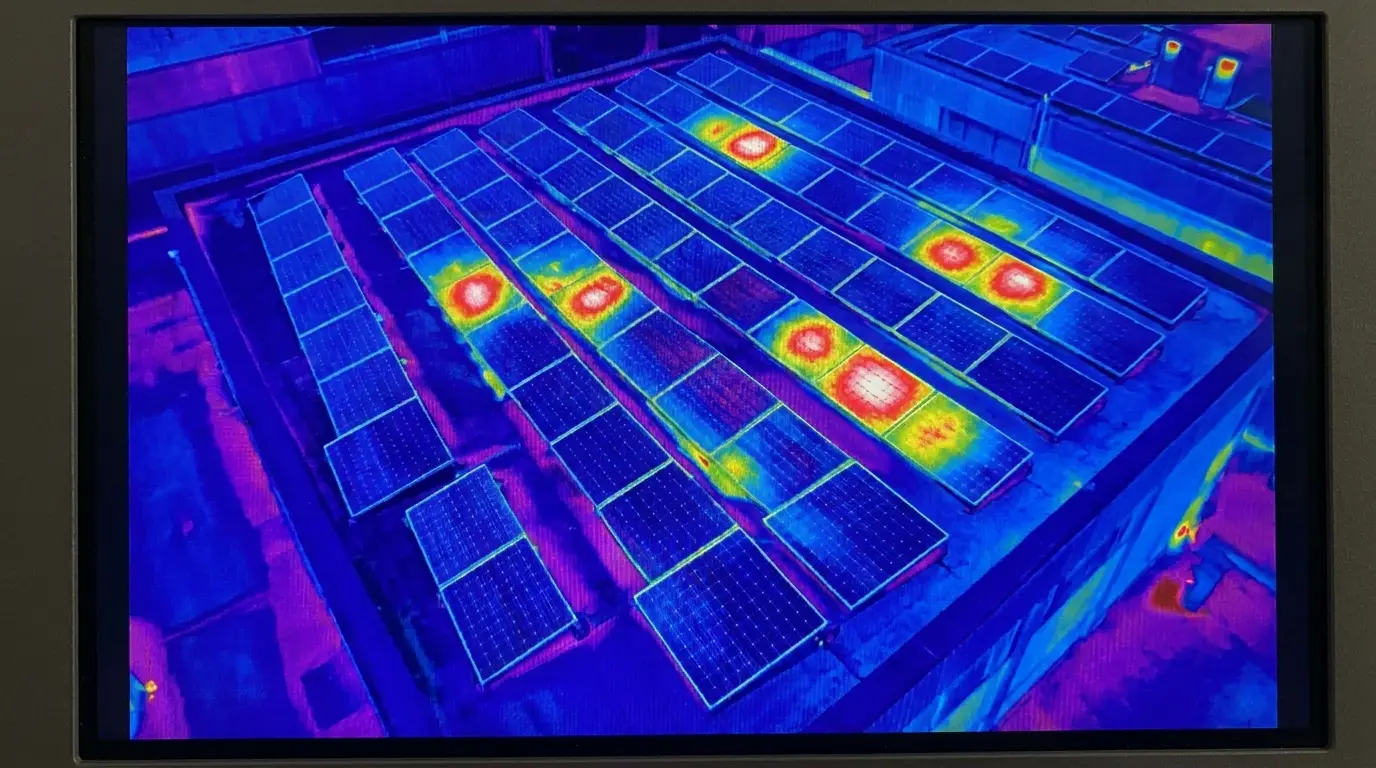

When a solar cell or a part of a panel begins to overheat due to an electrical or physical defect, it emits more infrared radiation than its healthy counterparts. The thermal camera captures this difference, presenting it as a distinct "hot spot" against the cooler background of the normally operating panel.

Thermal Drones: The Unmanned Advantage for Large-Scale Inspections

The sheer scale of modern solar farms in India makes traditional ground-based inspections incredibly time-consuming, expensive, and often impractical. Imagine walking through thousands of acres, manually checking each panel with a handheld thermal camera – it's simply not feasible for routine O&M. This is where thermal drones detect hot spots in solar panels at scale with unparalleled efficiency.

Here's why drones are indispensable for large-scale solar inspections:

1. Speed and Efficiency: A single drone can inspect several megawatts (MW) of solar panels in a matter of hours. Typically, a well-planned drone mission can cover 1-2 MW per hour, or approximately 50-100 acres per day, depending on factors like flight altitude, desired resolution, and site layout. This drastically reduces inspection time compared to manual methods, which might take weeks for a similar-sized farm.
2. Comprehensive Coverage: Drones can capture thermal data from every single panel, ensuring no potential hot spot goes unnoticed. Automated flight paths guarantee consistent coverage and data quality.
3. Safety: Inspecting large solar farms on foot can be hazardous, especially in remote or rugged terrain, or during extreme weather conditions. Drones eliminate the need for personnel to physically traverse the entire array, significantly improving safety.
4. Data Consistency and Analysis: Drones capture georeferenced thermal images, meaning each image is tagged with precise GPS coordinates. This allows for accurate mapping of defects and facilitates trend analysis over time. Specialized software can then automatically process these images, identify anomalies, and generate detailed reports.
5. Cost-Effectiveness: While there's an initial investment in drone services, the long-term savings from early fault detection, reduced downtime, and extended panel lifespan far outweigh the costs. Preventing even a small percentage of energy loss across a multi-MW farm translates into substantial financial benefits.

The Inspection Process: From Flight to Fault Report

A successful thermal drone inspection is a systematic process, meticulously planned and executed to ensure accurate and actionable data.

1. Pre-Flight Planning:

   • Site Assessment: Understanding the solar farm layout, panel orientations, and any potential obstacles.
   • Flight Path Generation: Using specialized software, a precise flight path is programmed into the drone's autopilot system. This includes parameters like altitude (typically 30-60 meters above panels), flight speed, and image overlap (usually 70-80% side and front overlap) to ensure comprehensive data capture for photogrammetry.
   • Weather Considerations: Thermal inspections are highly dependent on weather conditions. Ideal conditions include clear skies, high solar irradiance (typically >600 W/m²), and low wind speeds, preferably conducted during peak sun hours to maximize the thermal signature of defects. Overcast conditions or recent rain can significantly impact data quality.
   • DGCA Compliance: In India, all commercial drone operations must adhere to the Directorate General of Civil Aviation (DGCA) regulations. This includes using registered drones operated by certified pilots, obtaining necessary flight permissions, and adhering to no-fly zones. AiRotor Labs ensures full compliance with all DGCA guidelines for safe and legal operations.

2. Drone Operation & Data Collection:

   • The drone is launched and autonomously follows the pre-programmed flight path, capturing high-resolution radiometric thermal images and often accompanying visual (RGB) images simultaneously.
   • The onboard GPS ensures each image is accurately georeferenced.

3. Post-Processing and Data Analysis:

   • Once the flight is complete, the collected data is transferred to powerful workstations.
   • Specialized software (e.g., Pix4Dinspect, Raptor Maps, or proprietary solutions) is used to stitch the individual thermal images into a complete thermal orthomosaic map of the entire solar farm.
   • Advanced algorithms then analyze this map to automatically identify temperature anomalies, classify potential defects (e.g., hot cells, string failures, bypass diode issues, delamination, severe soiling), and pinpoint their exact location on the farm layout.
   • The software can differentiate between minor temperature variations and critical hot spots requiring immediate attention.

4. Reporting and Actionable Insights:

   • A comprehensive report is generated, detailing all identified anomalies, their severity, and precise GPS coordinates. This report often includes both thermal and visual images of each defect.
   • The report prioritizes defects based on their impact on performance and potential for further damage.
   • This actionable intelligence allows O&M teams to efficiently dispatch technicians directly to the faulty panels, enabling targeted repairs and minimizing downtime.

Maximizing ROI: The AiRotor Labs Advantage in India

For solar farm owners and O&M managers in India, partnering with an experienced drone service provider like AiRotor Labs offers a distinct advantage. Our expertise in how thermal drones detect hot spots in solar panels at scale translates directly into tangible benefits:

• Proactive Maintenance: Identify issues before they lead to significant power loss or catastrophic failure.
• Increased Energy Yield: By addressing hot spots promptly, you minimize energy losses and maximize the overall output of your solar farm. Studies show that even a few percentage points of efficiency gain across a large farm can result in crores of rupees in additional revenue annually.
• Extended Asset Lifespan: Early detection and repair of defects prevent accelerated degradation, prolonging the operational life of your expensive solar panels.
• Reduced O&M Costs: Targeted repairs based on precise drone data are far more efficient and cost-effective than speculative troubleshooting or manual inspections.
• Compliance and Safety: Our operations strictly adhere to DGCA regulations, ensuring all inspections are conducted safely and legally.
• Detailed Documentation: We provide comprehensive, georeferenced reports that serve as invaluable assets for performance monitoring, warranty claims, and future planning.

The Indian solar market is poised for exponential growth. To sustain this growth and ensure the profitability of solar investments, efficient and intelligent O&M practices are non-negotiable. Thermal drone inspections are not just an advanced tool; they are an essential component of modern solar asset management, safeguarding investments and optimizing energy production.
