Internal vs External Drone Inspection of Wind Turbine Blades: A Comprehensive Guide

India's commitment to renewable energy is stronger than ever, with wind power playing a pivotal role in our national grid. As wind farms expand across states like Gujarat, Tamil Nadu, Maharashtra, and Karnataka, ensuring the optimal performance and longevity of wind turbines becomes paramount. The blades, crucial for capturing wind energy, are constantly exposed to harsh environmental elements – from scorching sun and heavy monsoons to lightning strikes and dust erosion. Regular, precise inspection is not just good practice; it's essential for preventing costly downtimes, ensuring safety, and maximizing energy output.

Traditionally, blade inspections relied on manual rope access or ground-based binoculars, methods that are often time-consuming, hazardous, and limited in their diagnostic capabilities. The advent of drone technology has revolutionized this field, offering safer, faster, and more accurate alternatives. However, when it comes to assessing blade health, operators face a crucial choice: should the drone inspect the blade from the outside, or delve into its interior? This post will delve into the internal vs external drone inspection of wind turbine blades, examining the distinct advantages and disadvantages of each approach.

The Criticality of Wind Turbine Blade Inspection in India

Wind turbine blades are complex composite structures designed to withstand immense forces. Over time, they can develop a range of defects: leading edge erosion, surface cracks, lightning strike damage, delamination, and even internal structural fatigue. Unaddressed, these issues can lead to significant aerodynamic inefficiency, reduced power generation, increased operational costs, and, in severe cases, catastrophic blade failure.

For Indian wind farm operators, where many turbines are located in remote areas or challenging terrains, efficient inspection is even more vital. The sheer scale of wind farms, with hundreds of turbines, makes traditional manual inspections impractical and expensive. Drones offer a scalable solution, allowing for rapid assessment across an entire fleet, ensuring that small issues are identified and rectified before they escalate into major problems, aligning with India's ambitious renewable energy targets and the need for sustained operational efficiency.

External Drone Inspection of Wind Turbine Blades: Pros and Cons

External drone inspection involves flying a drone around the exterior surface of the wind turbine blades to capture high-resolution imagery and data. This is currently the most common and widely adopted drone inspection method.

Pros of External Drone Inspection:

1. Speed and Efficiency: A single turbine's external inspection can be completed in as little as 20-45 minutes of flight time, depending on blade size and wind conditions. This allows for rapid assessment of multiple turbines in a single day, significantly reducing downtime compared to manual methods which can take hours per blade.
2. Enhanced Safety: Eliminates the need for human personnel to work at heights, mitigating risks associated with rope access or cherry pickers, a major benefit in adherence to industrial safety standards.
3. High-Resolution Data: Drones can carry advanced sensors such as 4K or even 8K RGB cameras, thermal imaging cameras (e.g., FLIR), and sometimes multispectral sensors. These capture highly detailed images, allowing for the detection of surface defects like cracks (down to a few millimeters), erosion, paint degradation, lightning strike damage, and minor delamination. Thermal cameras can identify anomalies related to moisture ingress or internal structural issues manifesting as temperature differentials on the surface.
4. Cost-Effectiveness: Reduced personnel requirements, faster inspection times, and minimized turbine downtime translate into significant cost savings over the operational lifespan of a wind farm.
5. Repeatability and Trend Analysis: Automated flight paths ensure consistent data capture over time, enabling precise comparison of images from different inspection cycles. This facilitates trend analysis, helping predict maintenance needs and track the progression of defects.
6. Accessibility: Drones can easily reach all parts of the blade's exterior, including the tip, which can be challenging for manual inspectors.
7. DGCA Compliance: External drone operations for industrial inspection are well-established under India's DGCA (Directorate General of Civil Aviation) regulations. With proper Remote Pilot Certificate (RPC), drone registration, and flight permissions (e.g., through DigitalSky platform for VLOS/EVLOS operations), these inspections are fully compliant.

Cons of External Drone Inspection:

1. Surface-Only Detection: The primary limitation is that external inspection can only detect defects visible on the blade's outer surface. It cannot directly assess internal structural integrity or hidden damage like internal delamination, bondline failures, or water accumulation within the blade structure.
2. Weather Dependency: High winds, heavy rain, or dense fog can significantly impact drone flight safety and image quality, potentially delaying inspections.
3. Resolution Limitations for Internal Issues: While thermal cameras can hint at internal problems, they provide indirect evidence. Pinpointing the exact nature and extent of internal damage often requires more direct methods.
4. Data Volume and Processing: External inspections generate vast amounts of high-resolution image data, requiring robust data processing and analysis software to efficiently identify and categorize defects.

Internal Drone Inspection of Wind Turbine Blades: Pros and Cons

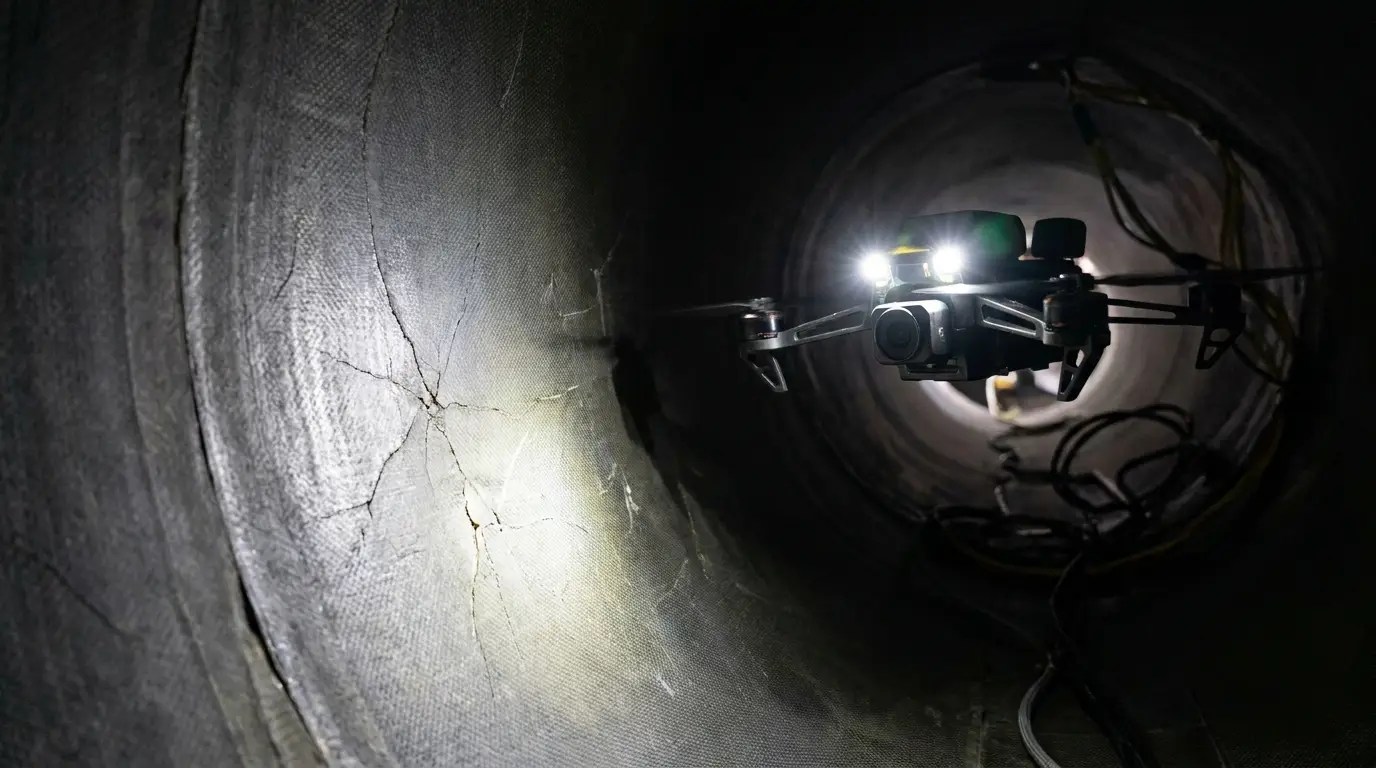

Internal drone inspection is a more specialized approach, involving a drone flying inside the hollow structure of a wind turbine blade. This method is gaining traction for its ability to uncover hidden issues.

Pros of Internal Drone Inspection:

1. Direct Internal Damage Detection: This is the paramount advantage. Internal drones can directly visualize and assess structural defects not visible from the outside, such as internal cracks, bondline failures, delamination between layers, water ingress, and manufacturing flaws. This provides a truly comprehensive understanding of the blade's structural health.
2. Specialized Sensor Capabilities: While typically equipped with high-resolution visual cameras, internal drones can potentially carry very small, specialized NDT (Non-Destructive Testing) sensors in the future, such as mini-ultrasonic probes or eddy current sensors, to further analyze material integrity. Currently, advanced visual cameras with powerful lighting are the norm, capable of detecting subtle anomalies.
3. Detailed Structural Assessment: Provides invaluable data for life extension analyses, post-major repair verification, or end-of-warranty inspections where a deep understanding of the blade's structural integrity is critical.
4. Controlled Environment: Once inside the blade, the drone is shielded from external weather conditions like wind and rain, allowing for consistent inspection conditions.

Cons of Internal Drone Inspection:

1. Complexity and Cost: Internal inspection requires highly specialized, often smaller and caged drones designed for confined spaces, equipped with advanced navigation systems (e.g., LiDAR, visual odometry) that operate without GPS. The technology is more expensive and requires highly skilled pilots.
2. Access Challenges: Gaining access to the blade's interior typically involves opening inspection hatches or panels, which is a meticulous process that adds to the overall inspection time and requires specific safety protocols. Not all sections of a blade, especially the very narrow tip, may be fully accessible.
3. Navigation Difficulties: Operating a drone in a dark, confined, and often metallic environment without GPS signal is extremely challenging. It demands sophisticated collision avoidance systems, powerful lighting, and exceptional piloting skills.
4. Increased Downtime: The turbine must be completely shut down and secured for a longer duration to allow for safe internal access and drone operation, impacting energy generation.
5. Data Interpretation Complexity: The internal structure of a blade can be intricate, and interpreting internal imagery requires specialized expertise to accurately identify defects and assess their severity.
6. DGCA Considerations for Operations: While the drone itself needs to be registered and operated by an RPC certified pilot, the specific operational procedures for flying inside a turbine blade are largely governed by industrial confined space entry protocols and turbine manufacturer guidelines, rather than standard outdoor drone flight rules. However, all safety and operational standards must be rigorously followed.

Choosing the Right Approach for Your Wind Farm

The decision between internal vs external drone inspection of wind turbine blades is not always an either/or scenario; often, a combined approach yields the best results.

• External inspections are ideal for:

  • Routine preventative maintenance checks (e.g., semi-annual or annual).
  • Post-storm assessments to check for immediate damage.
  • Monitoring known surface defects for progression.
  • Initial screening of a large fleet to identify turbines requiring closer attention.
  • Assessing overall blade cleanliness and aerodynamic efficiency.

• Internal inspections are best suited for:

  • When external inspections or performance data (e.g., SCADA data showing reduced output) suggest potential internal damage.
  • End-of-warranty inspections to thoroughly document blade condition.
  • After a major repair or modification to verify internal integrity.
  • Detailed structural health assessments for life extension projects.
  • Investigation of specific anomalies like unexplained vibrations or noise.

Many operators utilize external inspections as a primary, rapid screening tool. If an external inspection or other data points to a potential internal issue, then a targeted internal inspection can be commissioned for a precise diagnosis. This phased approach optimizes resources and minimizes turbine downtime.

AiRotor Labs' Expertise in Drone-Based Wind Turbine Inspection

At AiRotor Labs, we understand the unique challenges faced by wind farm operators in India. We leverage cutting-edge drone technology and a team of DGCA-certified, experienced pilots to provide comprehensive and compliant wind turbine blade inspection services. Our fleet includes advanced drones equipped with high-resolution RGB and thermal cameras, capable of detecting even the smallest surface anomalies. We are also at the forefront of exploring and deploying specialized solutions for internal inspections, ensuring we offer the most suitable technology for your specific needs. Our data analysis experts transform raw drone imagery into actionable insights, providing detailed reports that empower you to make informed maintenance decisions, extend blade life, and maximize energy production.

Secure Your Wind Farm's Future with AiRotor Labs

Understanding the nuances of internal vs external drone inspection of wind turbine blades is crucial for effective asset management. Both methods offer distinct advantages, and choosing the right one, or a combination, depends on your specific operational needs and the suspected nature of the damage. By integrating advanced drone technology, Indian wind farms can move towards more predictive, efficient, and safer maintenance strategies.
